HP-2 Micro Louver

HP-2 Micro Louver

The HP-2 Micro Louver luminaire enhances visual comfort and maximizes glare control. This luminaire delivers omni-directional glare control and provides a Unified Glare Rating (UGR) as low as 10. Allowing for unique design flexibility, the HP-2 Micro Louver is available in black or white finishes, continuous runs, independent segments tailorable in 1’ increments, and provides the option to be paired with illuminated and non-illuminated sections.

Downloads

  • Industry Best 10 Year Warranty
  • Buy American Act Compliance
  • Tunable White Luminaires Badge

Micro Louver Collection

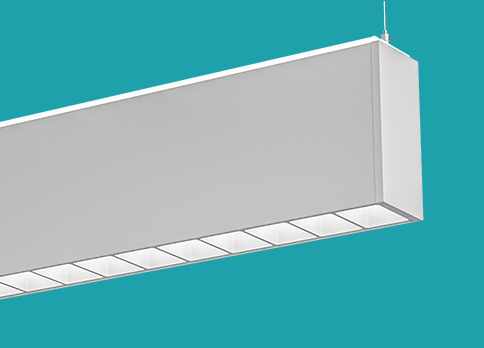

  • HP-2 Micro Louver Pendant Indirect Direct

    Indirect/Direct

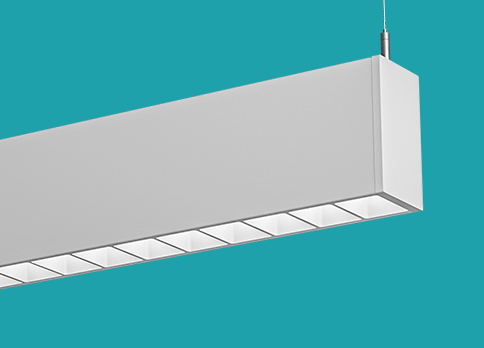

  • HP-2 Micro Louver Direct

    Direct

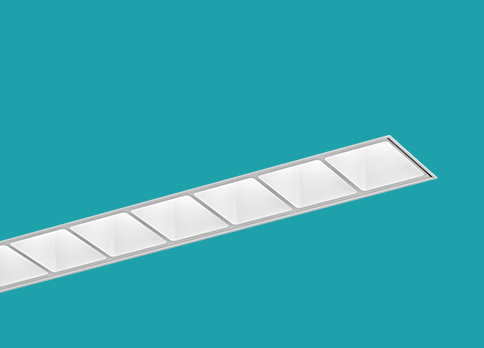

  • HP-2 Micro Louver Recessed

    Recessed

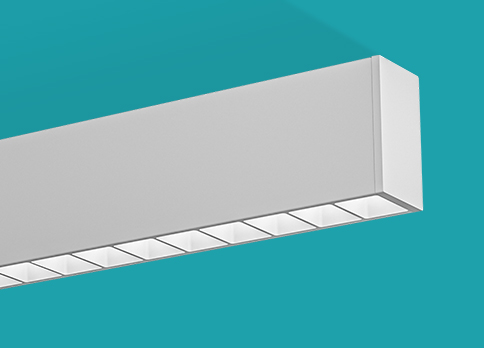

  • HP-2 Micro Louver Surface Mount

    Surface Mount

Product Spotlight

  • Average UGR 10 for black, UGR 13 for white

    Omni-Directional Glare Control

    Supports WELL V2 LO4 and provides luminance not exceeding 2500 cd/m^2 above the 45° viewing angle

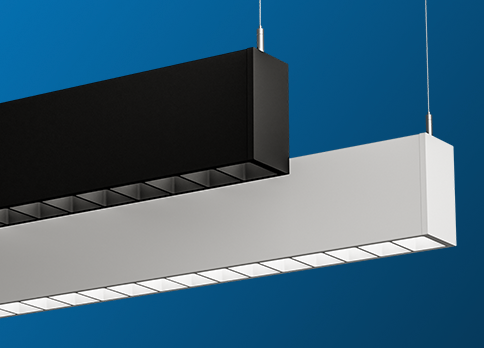

  • Available in black or white finishes

    Architectural Grade Finishes

    HP-2 Micro Louver is available in black or white to enhance performance and elevate design aesthetic

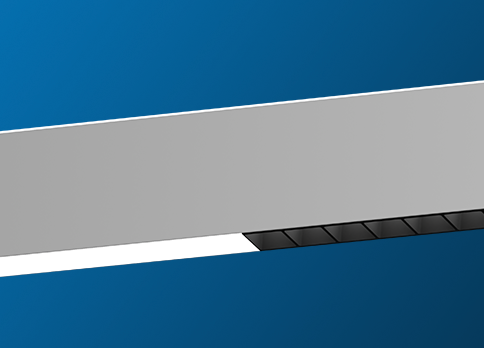

  • Continuous and Segmented sections

    Continuous and Segmented

    Specified as a continuous run or segmented with illuminated or non-illuminated sections

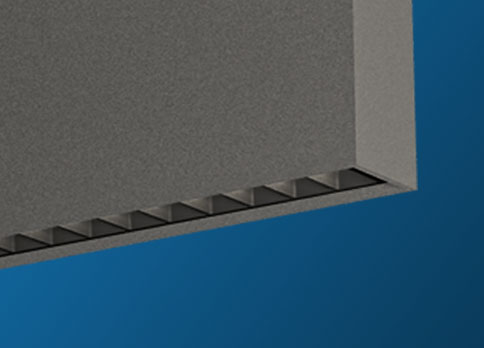

  • Pair HP-2 Micro Louver With Acoustics

    Pair With Acoustics

    Combine with a variety of Acoustic housing options to create unique combinations

Omni-Directional Glare Control

HP-2 Micro Louver is an advanced optical solution equipped with a deep 1" recessed design that conceals the light source and provides superior high angle glare cutoff.

HP-2 Black Micro Louver 10 average UGR, HP-2 White Micro Louver 13 average UGR

10'0" luminaire height. Seated observer eye height is at 3.9'.

HP-2 Micro Louver Layout for Black and White Micro Louvers


Left: Application diagram of a room with four rows of HP2 luminaires with black micro louvers installed ten feet above finished floor. The diagram shows  the results of an application UGR point by point calculation where the application UGR is no greater than 10; note in general the UGR scale ranges from 10 to 30, 10 representing the lowest glare calculation and 30 representing the highest.

Right: Application diagram of a room with four rows of HP2 luminaires with white micro louvers installed ten feet above finished floor. The diagram shows  the results of an application UGR point by point calculation where the application UGR is no greater than 16 with an average UGR of 13; note in general the UGR scale ranges from 10 to 30, 10 representing the lowest glare calculation and 30 representing the highest.

Minimized luminance values above 45º reduce eyestrain while supporting task performance and comfort.

HP-2 Micro Louver Luminance Values


Left: The diagram is a combined photometric distribution graph and luminance chart for an HP2 luminaire with black louvers. The peak intensity is 7823 candela and the peak luminance at 45 degrees is 210 candela per meter squared.

Right: The diagram is a combined photometric distribution graph and luminance chart for an HP2 luminaire with white louvers. The peak intensity is 8701 candela and the peak luminance at 45 degrees is 4800 candela per meter squared.
